787mm Small Toilet Roll Tissue Paper Production Line 120m/min

Product Categories
Qinyang City Haiyang Papermaking Machinery Co., Ltd
Contact Now

787mm Small Toilet Roll Tissue Paper Production Line 120m/min

Brand Name : HAIYANG

Model Number : 787mm

Certification : CE

Place of Origin : Henan, China

MOQ : 1set

Price : $29900-30000 1set

Payment Terms : L/C, T/T

Supply Ability : 20sets per year

Delivery Time : 2-6months

Packaging Details : Wooden Case and Plastic Film

Raw material : Water paper ,wood pulp,carton paper,etc.

Output paper : Toilet jumbo roll paper

Ration : 13-45gsm

Design speed : 120m/min

Capacity : 1t/d

Diameter of Yankee dryer : 787mm

Type : Crescent /Fourdrinier/Cylinder mould/Vacuum cylinder

Name : Toilet paper making machine

Condition : New

Contact Now

Products Description

Technical for Toilet paper making machine

Raw material Waste paper; wood pulp board
Output paper style Toilet paper; tissue paper
Paper weight 15-60g/m2
Paper width 787mm
Width of cylinder mould According to actual
Capacity 1T/D
Design speed 120m/min
Work speed 70-110m/min
Design Standards CNS export equipment
Machine specifications Upside down slurry form

787mm Small Toilet Roll Tissue Paper Production Line 120m/min
Detail photos of toilet tissue paper making machine from wood pulp

Toilet Paper Making Machine is the simplest paper machine of all paper machine types - three single machine. It's mainly made up of single-dryer, single-cylinder and single-net felts. The schematic shows the three structures of the machine.
No. Name of pulp equipment Function
1 Head box Pulverize the raw material, such as wooden pulp,waste paper.etc
2 Pulp pump work with desander to convey slurry
3 Vibrating screen Remove plastic and iron nail out of pulp
4 Inclined screen Remove more subtle impurities
5 High consistency desander Remove the sand
6 Thruster Stir the paper pulp,keep pulp reach a stable condition
7 Fiber separator Remove waste paper impurities.Get best pulp
8 Pressure screen Separate the impurity
787mm Small Toilet Roll Tissue Paper Production Line 120m/min

Processing for Toilet paper making machine

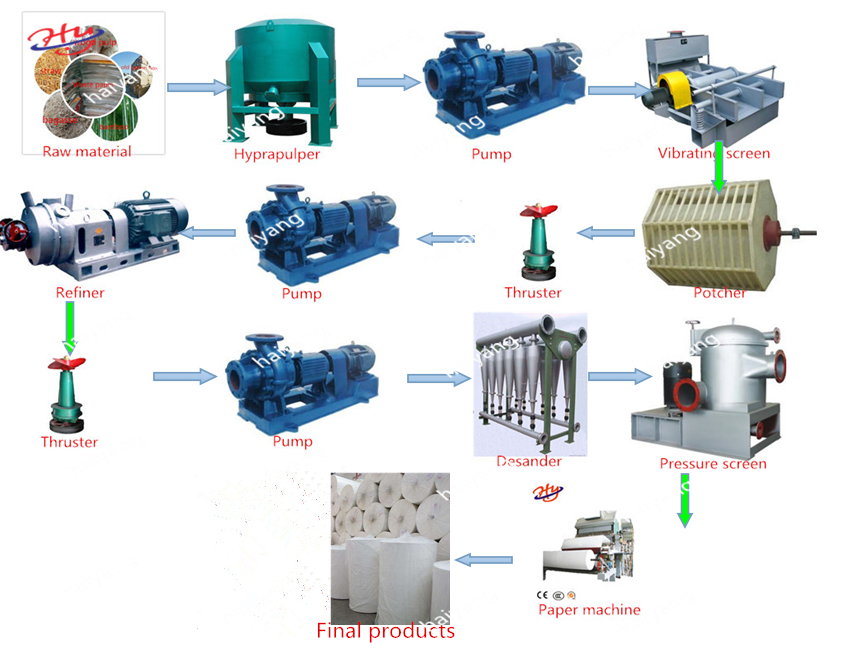

Raw material ⇒ Pulp ⇒ Screening purification ⇒ Pulp tank ⇒ Concentration ⇒ Pulp tank ⇒ Grinding ⇒ Slurry tank ⇒ Pulp box ⇒ Paper machine ⇒ Jumbo roll

787mm Small Toilet Roll Tissue Paper Production Line 120m/min
Packing and delivery
(1) Packaging:
Products will be packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export wooden package, waterproof film, straw rope, carton box ,etc, which will ensure the intactness of the products.
(2) Delivery:
1. sea transportation is from qingdao seaport or other ports.
2. the delivery time is decided by your needed machines or machine parts. But it also follows your needs.

Perfect service :
1.we can supply technical consulting and feasibility report according to client's current condition ;
2. We can make detail design of workshop and whole factory ;
3.we supply complete installation and test machine ;
4.we train client's engineer and worker for free ;
5.we supply spare part with best price ;
787mm Small Toilet Roll Tissue Paper Production Line 120m/min

Tips for Toilet paper making machine

  • How many tons per day you want to produce about mini toilet paper making machine?
  • How many width you want to finished paper about mini toilet paper making machine?
  • Which kind of boiler you want to use about mini toilet paper making machine? (The machine need to use boiler,the boiler function is produce hot steam to drying paper,the boiler have 3kinds: coal boiler and gas boiler and diesel boiler, you choose one)
